Urethane Casting

Production-grade parts with low-volume manufacturing and fast turnaround

At AXIPRECISION, our urethane casting services are ideal for prototyping high-quality parts with a broad range of material properties and the flexibility to accommodate complex designs. Vacuum casting provides an efficient low-volume production method for creating intricate components with production-grade materials, eliminating the need for expensive hard tooling. Our cast urethane service is fast, cost-effective, and scalable, supporting production quantities of approximately 20 to 100 units for prototypes, functional testing, and other applications. We offer a variety of materials, including Elastomers, ABS, HDPE, PC, and Acrylic-like materials, allowing us to meet specific application and performance requirements while maintaining consistent product quality. Partner with us to shorten your product development cycles and move from prototype to functional testing parts in as little as 48 hours.

What is Urethane Casting?

Urethane casting is a molding process that uses silicone molds and urethane (polyurethane) materials to produce high-quality, production-grade plastic parts. Also referred to as cast urethane, silicone molding, or RTV molding, this process is widely used for rapid prototyping and batch manufacturing, offering an efficient solution for producing parts with lower costs and shorter turnaround times. Compared with traditional manufacturing methods that require costly and time-consuming hard tooling, the primary advantages of vacuum casting are its flexibility, speed, and affordability. In cast urethane production, silicone is typically used to create the mold. A master pattern is first manufactured through CNC machining or 3D printing, and liquid silicone is then applied to form an accurate mold that replicates the final product. This process is particularly suitable for prototyping and low volume production, providing functional parts for testing, market exhibitions, product validation, or pilot runs.

This process is particularly suitable for prototyping and low volume production, providing functional parts for testing, market exhibitions, product validation, or pilot runs. This process can be used for a wide range of products and applications, including automotive, aerospace, consumer electronics, home appliances, medical devices, and more.

Our Urethane Casting Process

At AXIPRECISION, our urethane casting services follow a quality-focused process designed to deliver accurate, consistent, and production-ready parts. Our vacuum casting process consists of four main steps, from creating the master pattern to final finishing.

Creating the Master Pattern

The urethane casting process starts with a precision master pattern based on the customer’s CAD design. Depending on the project, the master pattern can be produced through precision CNC machining or 3D printing using SLS or SLA technology, providing an accurate reference for creating the final parts.

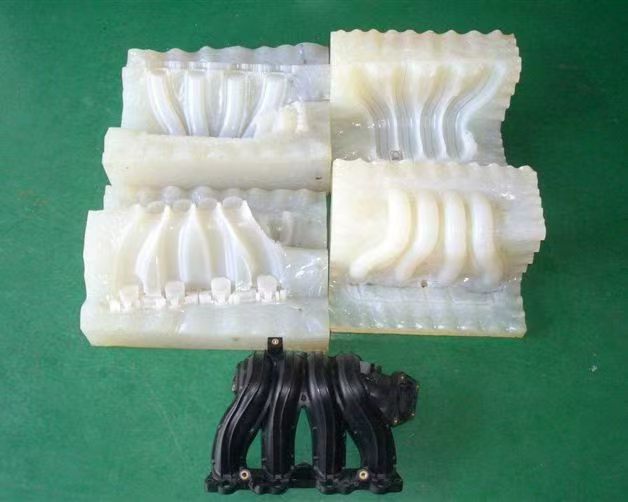

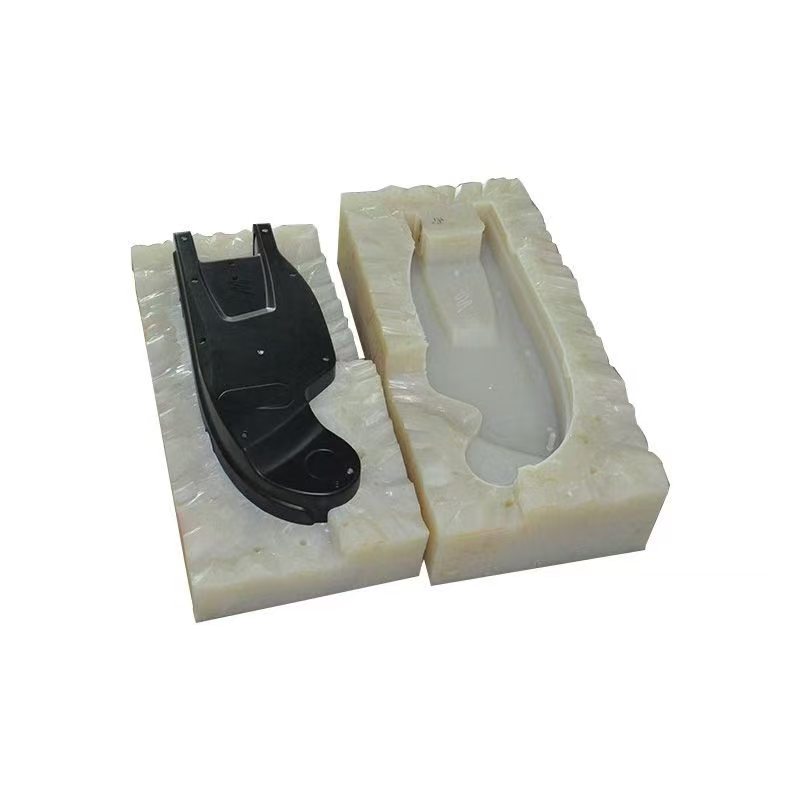

Making the Silicone Mold

Liquid silicone is carefully poured around the master pattern inside a vacuum environment to create the casting mold. After the silicone cures and solidifies, the mold is carefully cut into sections and the master pattern is removed, leaving a detailed cavity that accurately reproduces the original pattern.

Casting the Parts

Once the silicone mold is ready, its cavity is used to produce the final urethane casting parts. Polyurethane resins are mixed and preheated to approximately 40°C before casting. The resin is poured into the silicone mold inside a vacuum chamber and then placed in an oven for around 1–5 hours, depending on the part size and material. After curing, the resin part is removed from the silicone mold, producing an accurate and consistent replica. A typical silicone mold can produce approximately 20–25 parts before replacement is required.

Applying Final Finishes

The final step is to prepare the urethane casting parts for their intended application. Once fully cured, prototypes can be cleaned, painted, polished, coated, or otherwise finished according to the customer’s requirements. Finishing and surface treatment continue as needed until the project is completed and the parts are ready for evaluation, presentation, or the target market.

Urethane Casting Applications

Low-Volume Manufacturing

Urethane casting offers a practical combination of flexibility, consistency, and accuracy, making it well suited for low-volume manufacturing. At AXIPRECISION, we provide fast and cost-effective cast urethane services for production quantities typically ranging from 20–100 units.

Bridge Tooling and User Evaluation

Bridge tooling provides a practical step between product development and full-scale production of market-ready products. The flexibility of urethane casting makes it possible to produce functional prototypes for testing, validation, and user evaluation. At AXIPRECISION, we use vacuum casting to reduce development and tooling risks, allowing designs to be tested and refined before investing in final production tooling.

Trade Exhibitions

Urethane casting can produce appearance models and look-alike parts for trade shows, exhibitions, and product demonstrations. Companies can create multiple finished pieces from a master pattern and display them to potential customers, business partners, or investors while gathering valuable feedback before moving forward with product development.

Rapid Prototyping

Urethane casting is a practical option for producing high-quality prototypes and low-volume production parts with short lead times. Because a silicone mold tool can be created relatively quickly and at a lower cost, parts can be manufactured, tested, modified, and finished before conventional molding or final production tooling is put into operation.

Contact Us

Contact Axi Precision to get a free quote for mold making services. Our dedicated team is ready to provide tailored solutions and faster turnaround time.
